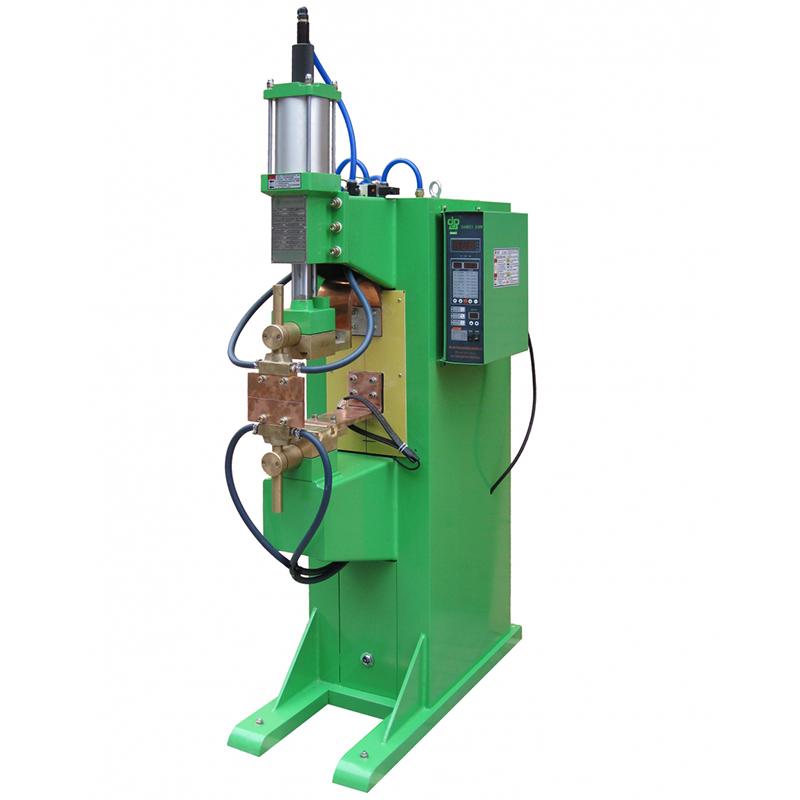

DN Multi Spot Welder

The DN multi spot welder with high secondary volts is engineered for high precision through digital control. With optimized welding results, it can be widely used for electro-soldering, heat tempering, and annealing.

Features

Digital setting and display of all operating parameters like weld voltage, power setting, etc.
In-memory data storage to prevent accidental data loss.
Voltage fluctuations are monitored to prevent damage to data.
Adjustable stroke air cylinder and speed control valves to control ram movement up and down.
Resistance welding transformer delivers a strong electrical current. The water-cooled welding transformer can deliver power at high efficiency to reduce the energy loss using silicon steel cores.
40 sets of welding parameters are under microprocessor precision control.
Error management is adopted for general warnings and major faults through the appearance of error messages.

Parameter

Item	Unit	DN-25	DN-40	DN-63	DN-80	DN-100	DN-150	DN-200
Rated voltage	V	380	380	380	380	380	380	380
Rated frequency	HZ	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Rated capacity	KVA	25	40	63	80	100	150	200
Rated duty cycle	%	30	30	30	30	30	30	30
Insulation class		B	B	B	B	B	B	B
Maximum secondary short circuit current	A	13500	19500	25000	30000	35000	41000	46000
Maximum welding power	KVA	35	56	89	113	141	212	282
Maximum pressure	N	3900	6100	6100	10000	10000	15600	15600
Stroke	mm	50	50	50	50	50	50	50
Input air pressure	Mpa	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Cooling water flow	L/min	5	5	5	5	5	5	5
Arm extension length	mm	320	320	320	320	320	320	320
